IoT時代に最適な半導体製造装置を独自の技術で提供致します。
プロセスに応じたソリューションを提供し、お客様の求めるニーズに対応致します。

We provide semiconductor manufacturing equipment optimal for the IoT era with our original technology.
We provide solutions according to the process to meet the needs of our customers.

TOPICS

  • アイキャッチ

    SEMICONJAPAN2022

    '22.12.20

    SEMICONJAPAN 2022 ご来場有難うございました。

PEGASUS

イメージ

PEGASUSは、メモリ、パワーデバイス、パッケージ、MEMS市場において高品位の成膜プロセスを提供します。

PEGASUS provides high-quality film deposition processes for the memory, power device, packaging, and MEMS markets.

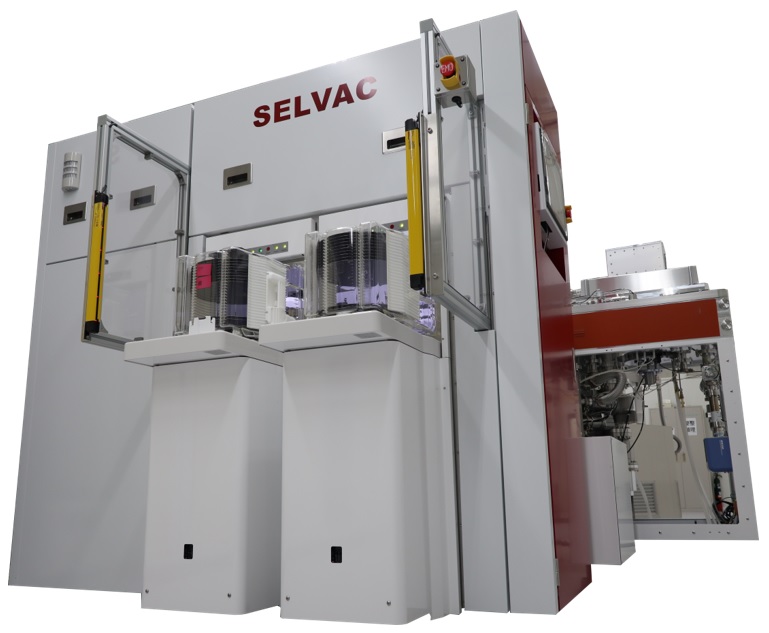

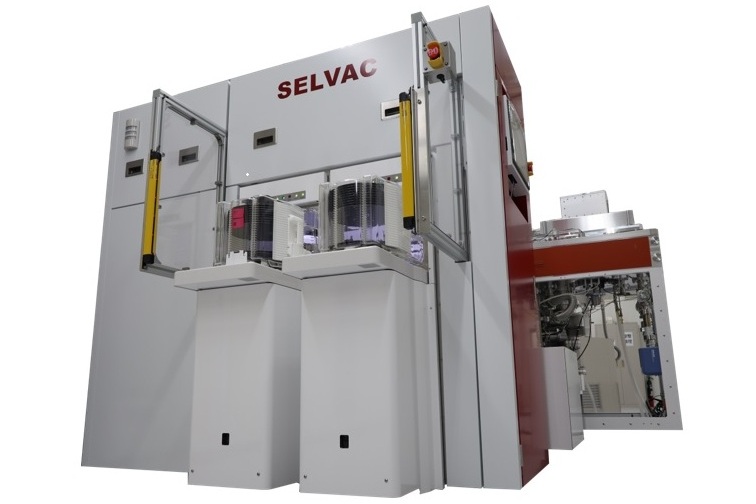

PEGASUS Plat Form

イメージ

PEGASUS Plat Formは、省スペース設計され柔軟なアーキテクチャによりプラズマCVD、RTA、Ashing、Etching のProcess chamberが統合可能なシステムです。

PEGASUS Plat Form is a system that can integrate plasma CVD, RTA, Ashing, and Etching process chambers with a space-saving design and flexible architecture.

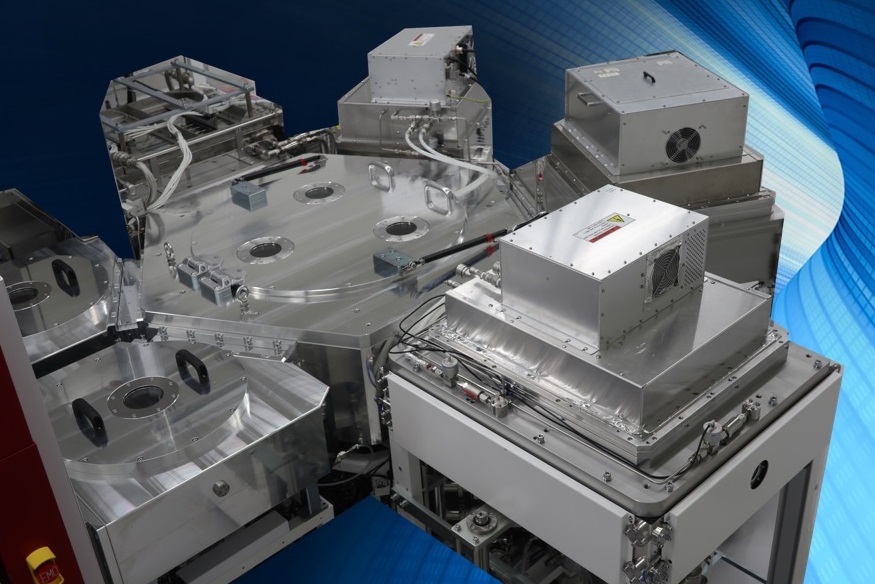

PEGASUS HDP-CVD

イメージ

PEGASUS HDP-CVDは、ICPの高密度プラズマの高いガス分解効率で、低温成膜と緻密な膜を作り上げます。
2タイプのHDP-CVDは、BタイプとHタイプが有り、低温成膜と高速処理に使い分けています。
低温成膜のSiO2は,熱酸化膜と同レベルの耐電圧(10MV)の膜も出来ます。

PEGASUS HDP-CVD uses the high gas decomposition efficiency of ICP’s high-density plasma to form low-temperature films and create dense films.
There are two types of HDP-CVD, type B and type H, which are used for low-temperature film formation and high-speed processing.
Low-temperature SiO2 film formation can also produce films with withstand voltage (10MV) on the same level as thermal oxide films.

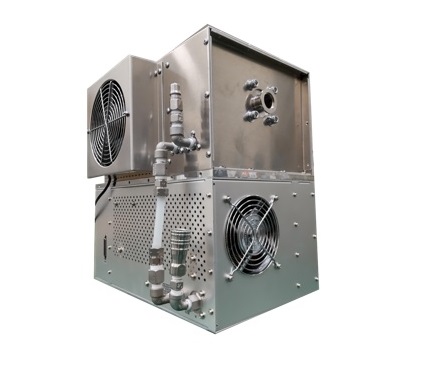

PEGASUS RTA

イメージ

PEGASUS RTAは、φ300mmSiに対応した基板回転タイプのアニール装置です。
高純度石英チューブの赤外線ランプヒーターは、透過率が高くクリーン加熱に適し、リフレクターの設計と反射膜で照射効率に優れたヒータ-ユニットです。

PEGASUS RTA is a substrate rotation type annealing equipment for φ300mmSi.
The high-purity quartz tube infrared lamp heater is suitable for clean heating due to its high transmittance.

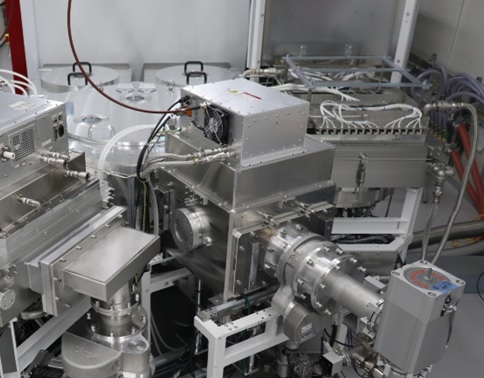

SATERA

イメージ

Satera(常温接合装置)は、独自のプラズマ表面活性化技術と高位置精度の組み合わせで、

メモリの3次元積層、CMOSイメージセンサ向けに対応した装置です。



Satera (room-temperature bonding equipment) combines unique plasma surface
activation technology and high positional accuracy to support three-dimensional
stacking of memory and CMOS image sensors.

MERCURY

イメージ

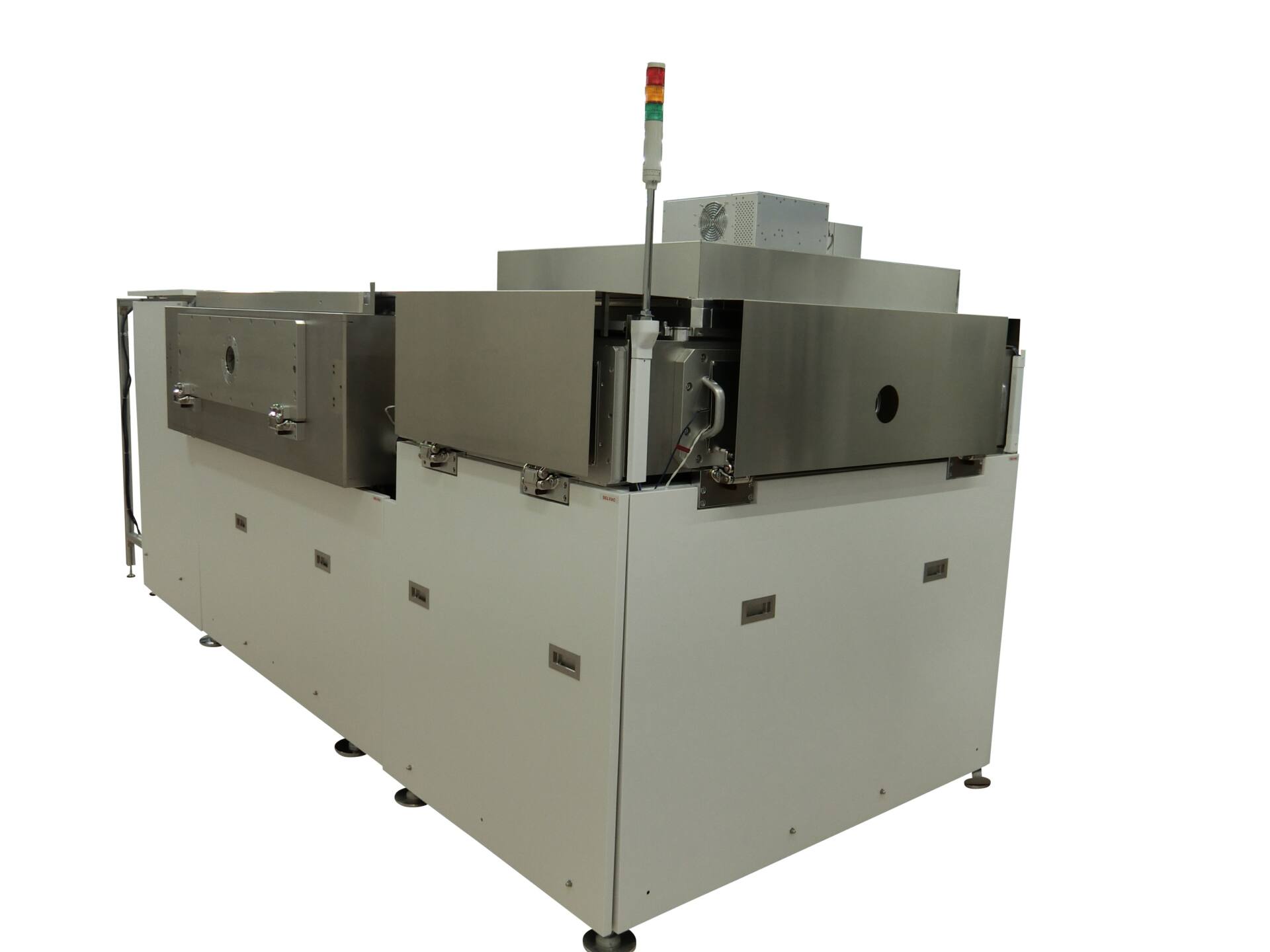

PEGASUS 1500は、G4.5又はφ6インチ(25枚)基板の搭載が可能な大型バッチ処理装置です。
数10μmの厚膜処理は、枚葉式では効率が良くないですが、本装置は一度に大量に処理できるため処理時間が少なく済みます。
ICPの高密度プラズマを採用し低温で処理が出来る為、熱による時間ロスや電力消費が少なく済みます。

PEGASUS 1500 is a large batch processing device that can mount G4.5 or φ6 inch (25 sheets) boards.
Thick film processing of several tens of 10μm is not efficient with the single-wafer type, but since this device can process a large amount, the processing time required for one sheet can be reduced.
Since ICP high-density plasma is used and processing can be performed at low temperature, time loss and power consumption due to heat can be reduced.

PROCESS DATA

Process Data

HDP-CVD Process Data

・低温成膜 Low temperature film deposition

・TSV成膜 TSV film deposition

・超厚膜  Ultra thick film

・高速成膜 High speed film deposition

Equipment specifications

Wafer
Size (mm)
UseProcessProcess
temp (℃)
ReactorSubstrate
PEGASUS HDP-CVD300、200、150Logic、Pawer-MOSOxide, Nitride~200Plasma/ThermalSi
PEGASUS ASH300、200、150Semiconductor、PackageAshing/Etching~300Plasma/ThermalSi、SiC
PEGASUS RTA300、200、150Logic、Pawer-MOSOxide,Nitride/Anneal~1,500ThermalSi、SiC
MERCURY□1000orφ6-25pcOLED、Soler、senserSiO2、SiN、SiON~50PlasmaSi、Glass、Film
